SF Fiberglass Frp Double Wall Underground Fuel Oil Storage Tank Fule Gas Station Diesel Petrol Fuel Oil double layer

Key attribute

Industry-specific attribute

Other attribute

Packaging and delivery

Supply Ability

Lead time

Customization

FRP SF double-layer oil tank

Double-layer oil tanks refer to three types:

SF oil storage tank ,SS oil storage tank,and FF oil storage tank.

The full name of SF is steel reinforced glass fiber double-layer structure oil storage container, which is a double-layer structure oil tank with a layer of glass fiber reinforced plastic (that is, glass fiber reinforced plastic) anti-seepage jacket added to the single-layer steel oil tank . There is a through gap space between the steel inner tank and the FRP outer tank;

the full name of FF is glass fiber reinforced plastic double-layer oil tank, the inner and outer layers are both made of glass fiber reinforced plastic, and there is a through gap space in the middle; The leak detection device can monitor the gap space 24 hours a day. Once the inner tank or the outer tank leaks, the sensor of the leakage detection device can detect the liquid level at the bottom of the gap space and give an alarm to ensure the safe use of the oil tank

Double wall fuel tank specifications

The structure of SF double-layer oil tank:

Inner layer: It is made of 6mm thick Q235-B steel plate, which has improved strength compared with ordinary single-layer oil tanks with a thickness of only 5mm.

Outer layer: Reinforced glass fiber layer, with a thickness of 2.5mm or more, with good compression and shock resistance. It has corrosion resistance and electric corrosion resistance;

Through gap: 0.1~3.5mm; the range of 300°, without firm support.

Strengthening structure: strengthening the inner tank

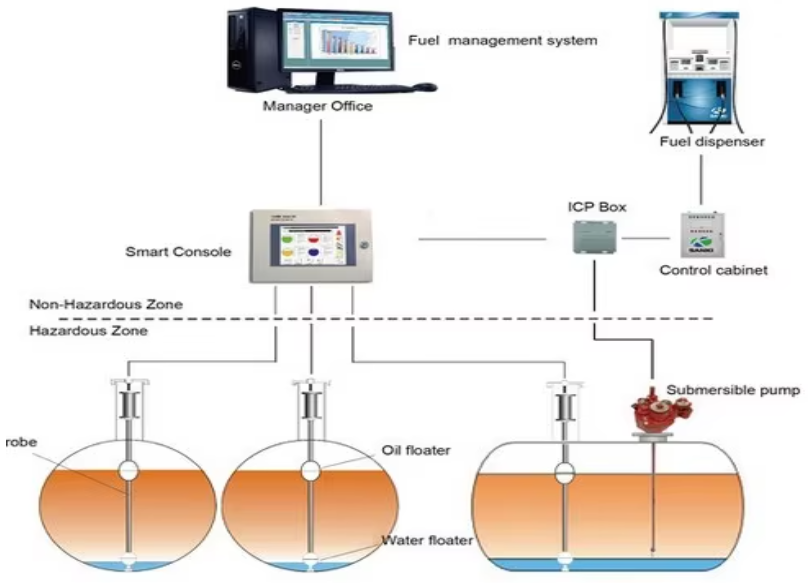

Detection equipment: Leak detector monitors in real time for 24 hours, and alarms when it detects the liquid level at the bottom of the gap space.

double wall fuel tanks Property and features

1,Safety
The interlayer space is formed by sole technology;the leakage detector keeps 24 hours monitoring, to avoid the hidden trouble absolutely.

2,Environment protection
It is very convenient to check and maintain the leakage monitoring system,and protect the soil and water ecological environment.

3.Economy
The service life of the double layers fuel oil storage tank is 3~5 times of the common single layer fuel tank,at least 30 years.The convenient installation can shorten the construction period and decrease the cost input.

---Less than 40,000 liters underground tank can ship by 40ft HC.
---Over 40,000 liters tank can transport by bulk vessel.

Key attribute

Industry-specific attribute

Other attribute

Packaging and delivery

Supply Ability

Lead time

Customization

FRP Food brewing tank

FRP equipment is an important fermentation equipment in the brewing industry because of its good corrosion resistance, light weight, high strength, and environmental protection. The food-grade resin used by our company is non-toxic, tasteless, safe and hygienic. The glass fiber reinforced plastic fermentation tanks produced are widely used in various brewing enterprises with good design and technology.

Weifang Yongda FRP Co., Ltd, founded in 2009, with a registered capital of 12 million yuan, is a comprehensive enterprise that produces FRP products, FRP manufacturing machinery and sells FRP raw materials. The company has a large number of professional and technical personnel to continuously develop and research new products, the company has four CNC FRP fiber winding production lines and two vacuum infusion product production lines. Since its establishment, the company has always adhered to the people-oriented, good faith business principle, so that the enterprise in the fierce market competition, to maintain stable, rapid and strong development.

The company's main products: glass fiber reinforced plastic pipes, pipe fittings, glass fiber reinforced plastic purification tower, biological deodorization filter tank, glass fiber reinforced plastic environmental protection equipment, exhaust gas treatment system, activated carbon adsorption box, glass fiber reinforced plastic septic tank, glass fiber reinforced plastic cooling tower series, sewage pool cover, equipment shroud, and undertake glass fiber reinforced plastic anticorrosion project, VOCs purification project.

With enthusiastic service attitude, strong technical force, mature production equipment and technology, strict detection means, perfect after-sales service, our company sincerely cooperates with you to create brilliance.
