High Heat Resistant FRP Glass Fiber Winding Pipe Fiberglass
Underground Pipeline Construction Jacking Pipe Sunken Pipe
Key attribute
Industry-specific attribute
| Application | Waste water discharge, air exhaust, cable duct, etc |
| techinque | winding |
Other attribute
| Diameter | Customized |
| Surface Treatment | smooth,Customized |
| Marketing Type | Hot Product 2024 |
| Length | 6m,12m,Customized |
| Thickness | 4.0 ,Customized |
| color | green,black,yellow,or customized |
| material | Fiber plastic,FRP,ＧＲＰ |
| Brand Name | YongDa |
| product name | Fiberglass jacking pipe,FRP sunken pipe,FRP jacking pipe,FRP sunken
pipe |
| place of origin | Shandong province,CHINA |
| size | Customized |
| usage | underground construction convey |
Packaging and delivery
| packaging Details | bundled |
| port | QingDao ,or Customized |
Supply Ability
| selling units | single item |
| single package size | based on orders |
| Single gross weight | based on orders |
| Supply Ability | 1000 meters per Week |
Lead time
| quantity(meters) | 1-1000 | ＞1000 |
| Lead time(days) | 15 | To be negotiated |
Customization
Customized logo
Min. order: 100
Customized packaging
Min. order: 100
Graphic customization
Min. order: 100
Production Description
Fiberglass reinforced plastic pipe is a water supply and drainage
field, the newly developed pipeline products, can be in the case of
non-excavation of the ground, to complete the construction and
installation of underground pipeline, which can directly through
the highway, railway, rivers, ground buildings, due to its own good
corrosion resistance, light weight, smooth inner wall, large flow,
good adaptability to geological conditions and other
characteristics, so that it becomes the first choice of large and
medium-sized urban pipeline engineering Piping material.
The production process of 12-meter-long fixed-length winding FRP
sandwiched pipe is adopted, and four 3-meter-long FRP sections are
produced on each mold at one time.
The top pipe is sandwiched intermittently according to the designed
number of layers, and the pure FRP part of 300~800mm at both ends
of each top pipe is realized by the method of local reinforcement
of glass fiber fabric. Each section of the top pipe is ground and
cut off by special equipment, and can be demolded at one time after
trimming to the specified shape and size. The production efficiency
can fully meet the requirements of the specified project progress.
Pure FRP and FRP sandwiched composite reinforced integrated design
and production process.

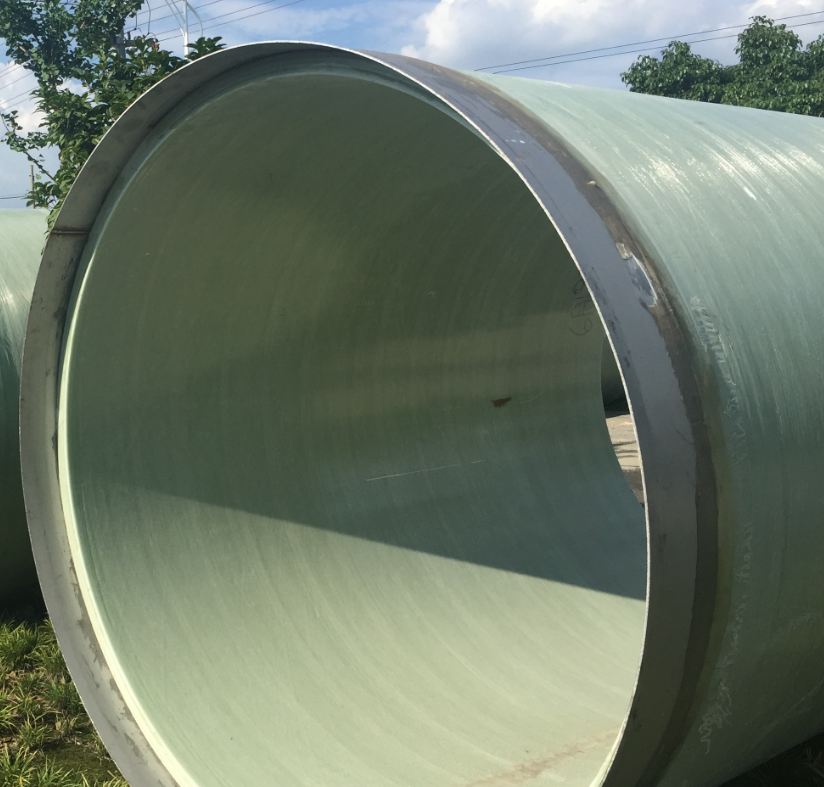

Embedded steel collar is used to connect and position the pipe
segments, which is combined with fiberglass resin mouth sealing
during jacking and water sealing after docking of the two pipes.
The two ends of the jacking pipe are turned out on a platform, so
that the outer diameter of the steel sleeve ring is the same as
that of the jacking pipe itself after the steel sleeve ring is put
on the end of the pipe. The steel sleeve ring plays the role of
positioning and increases the ability of uneven settlement
resistance.
Features of FRP pipe jacking products:
1,The pipe is laid without trenching, and the construction progress
is fast;
2,It is easy to correct the deviation during jacking and the
jacking distance is long;
3,Smooth appearance, light weight, small resistance to jacking; the
surface of FRP duct is not easy to be deposited, and will not
produce pipe hugging phenomenon;
4,The inner wall of FRP header pipe is very smooth, with good
hydraulic fluid characteristics;
5,It has excellent waterproof, seepage-proof and chemical corrosion
resistance;
6,It can be operated for a long time under high temperature
conditions and maintain good mechanical properties;
7, the product is applied to a wide range of environmental
temperatures, generally -40 ~ 70 ℃, fiberglass reinforced plastic
duct can resist long-term exposure to sunlight;
8, has excellent wear-resisting performance, the transported medium
will not cause damage to the inner wall of the pipe;
9, low thermal conductivity of FRP header pipe, good heat
preservation performance;
10, non-toxic, no secondary pollution;
11, small specific gravity, light weight, convenient loading and
unloading, easy to install;
12,The FRP duct is designed with high safety coefficient and long
service life, ensuring a service life of 50 years;
13, FRP duct operation and maintenance costs are low, superior
corrosion resistance, without any maintenance;
Application
● Water diversion, water supply engineering.
Petroleum and chemical engineering.
● Construction works.
● Sewerage projects.
Electric power, metallurgy, environmental protection engineering.
Comprehensively, FRP header pipe can complete the construction and
installation of underground pipeline without excavating the ground,
and FRP header pipe can directly cross the highway, railroad, river
and ground building, because the FRP duct itself has the
characteristics of good corrosion resistance, light weight, smooth
inner wall, large flow rate, and good adaptability to geological
conditions, etc., so the FRP header pipe has become the first
choice of material for pipeline projects in large and medium-sized
cities.
