So2 scrubbers wet scrubber dry scrubber ammonia absorption tower
frp spray tower waste gas treatment tower
Key attribute
Industry-specific attribute
| Application | Industry, chemical industry, foundry industry, high pollution
industry |
| techinque | Winding , hand layup |
Other attribute
| Dimension | customized |
| Surface Treatment | smooth ,customized |
| Marketing Type | Hot Product 2024 |
| Purification efficiency | >=90% |
| size | Customized Size |
| color | green,or customized |
| material | Fiber Reinforced Plastic,FRP GRP |
| Brand Name | YongDa |
| product name | FRP Acid Mist Absorption Tower; FRP acid mist Purification Tower |
| place of origin | Shandong province,CHINA |
| shape | Customized |
| medium | sulfuric acid mist (H2SO4), hydrogen chloride (HCL) and hydrogen
fluoride (HF) gases, chromic acid mist (Cr03), hydrogen cyanide
(HCN) gases, ammonia (NH3), alkali vapor and other water-soluble
gases, as well as high concentration hydrogen sulfide waste gas |
Packaging and delivery
| packaging Details | bundled,nude,as order |
| port | QingDao or Customized |
Supply Ability
| selling units | single set |
| single package size | based on orders |
| Single gross weight | based on orders |
| Supply Ability | 10 Sets per Week |
Lead time
| quantity(sets) | 10 | ＞10 |
| Lead time(days) | 15 | To be negotiated |
Customization
Customized logo
Min. order: 1
Customized packaging
Min. order: 1
Graphic customization
Min. order: 1
Production Description
Main working principles and technical features:

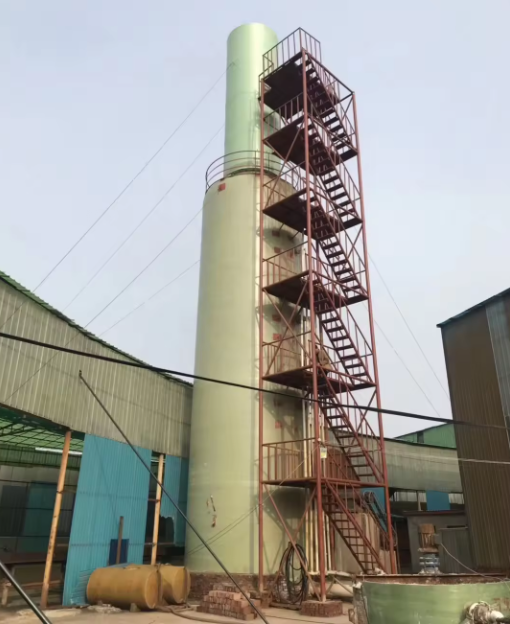

Absorption & purification tower is usually cylindrical tower body,
with swirl plate inside the tower. When working, the flue gas moves
from the bottom of the tower. Due to tangential inlet of the tower,
especially the guiding function of the tower plate blade, the flue
gas rotates and rises. The liquid flowing down the plate is sprayed
into fog drops on the tower plate. The droplets are driven by the
air flow to rotate, and the centrifugal force generated enhances
the air contact thrown onto the tower wall and flows down the wall
to the next layer of the tower plate, and is atomized by the air
flow again for the gas-liquid contact. As mentioned above, the
liquid can be separated effectively after fully contacting with the
gas to avoid entrainment of mist and foam, and its gas-liquid load
is more than twice that of the common tower plate. Because the
liquid layer on the tray is thin and the porosityis large, the
pressure drop is low, and the pressure drop is about half lower
when the same effect is achieved. Therefore, the comprehensive
performance is better than the common tray. External circulation
pipe into the wall, circulating fluid by filter by atomizing nozzle
in the vortex is formed on the uniform distribution of droplets and
the good contact with flue gas, formed the great phase contact
interface, the soluble acid salt or precipitation reaction with SO2
fully formed (depending on the selected desulfurizer and), at the
same time, the larger dust particles under the action of
centrifugal force is removed, small dust particles by droplets
collision with the interception, and multiple diffusion effect such
as brown and condensed into larger dust particles and be left to
the tower wall, dirty after clear grey cast into the heavy grey
pool. Because of the good gas-liquid contact condition in the
tower, the SO2 in the gas is absorbed by the alkaline liquid
(desulfurization) effectively. The swirl plate tower also has good
dust removal performance. The dust particles in the gas are adhered
to the swirl plate and removed by water mist. In addition, the dust
particles and fog droplets are adhered to and removed after being
thrown to the tower wall by centrifugal force.
Company Profile
Weifang Yongda FRP Co., Ltd. was founded in 2009, is a professional
engaged in glass fiber reinforced thermosetting plastic and other
new composite materials research and development, production,
sales, service, a comprehensive scale of four-in-one enterprise!
The company's main products: FRP pipes, pipe fittings, FRP
purification tower series, biological deodorization filter tank,
environmental protection equipment, exhaust gas treatment system,
activated carbon adsorption tank, septic tank, cooling tower
series, storage tanks, equipment tanks, aquaculture equipment,
equipment shrouds, and to undertake anticorrosive engineering,
thermal insulation engineering, VOCs purification project.
Translated with DeepL.com (free version)
Why Choose Us
Advanced production equipment
Adequate inventory
Transportation and packaging
FAQ
Q1: What is your company name?
WeiFang YongDa FRP Co., Ltd
Q2: Are you a factory or a trading company?
We are a factory and a professional manufacturer of FRP products.
We have more than 50 skilled
technicians. In addition,
we have professional mold engineers for design and production.
Q3: Where is your factory? How can I visit you?
West side of the road about 3 kilometers north of Wenhe Bridge Toll
Station on National Highway 206,
Ying qiu Town, Chang Le County, Weifang City, Shandong
Province, China.If you come to our factory,
I will arrange a pick-up for you so that we can meet up faster.
Q4: How can you guarantee the product quality?
We have the quality control system ISO9001:2015, and it's been
followed strictly. We also have the
professional QC team, and each our package worker will be in charge
of the final inspection according
to the QC instruction before packing.
Q5: Can you do OEM for me?
We accept all OEM orders, just contact us and give me your
design,we will offer you a reasonable
price ASAP.
Q6: What payment methods do you support?
T/T, L/C. western union
