High strength, light weight, anti-corrosion, not easy to aging,
high wind power, low noise FRP round centrifugal fan
Key attribute
Industry-specific attribute
| Application | Printing Shops, Construction works , Energy & Mining, Oil
Exploitation, Oil Refining, Chemical, Metallurgy, Marine Oil,
Platform, Fire Fighting, Oil Tanker |
| techinque | Filament Winding |
Other attribute
| Dimension | customized |
| Surface Treatment | smooth ,customized |
| Marketing Type | Hot Product 2024 |
| core components | FRP fans,motor |
| size | Accept customization |
| color | green,white,yellow,grey,or customized |
| material | Fiber Reinforced Plastic,FRP GRP |
| Brand Name | YongDa |
| product name | FRP centrifugal fan |
| place of origin | Shandong province,CHINA |
| Voltage | 220V~380V,customized |
| Motor | Customized |
Packaging and delivery
| packaging Details | bundled,nude,as otrder |
| port | QingDao or Customized |
Supply Ability
| selling units | single set |
| single package size | based on orders |
| Single gross weight | based on orders |
| Supply Ability | 10 Set per Week |
Lead time
| quantity(sets) | 10 | ＞10 |
| Lead time(days) | 15 | To be negotiated |
Customization
Customized logo
Min. order: 1
Customized packaging
Min. order: 1
Graphic customization
Min. order: 1
Production Description
Performance characteristics:
1. The shaft and head of the impeller are anticorrosive treated
with fine workmanship, and the impeller is made of high-grade
anticorrosive resin with thickening, with strong bonding
performance, refusing to explode the wheel;
2. It has the characteristics of high strength, light weight, not
easy to aging, good corrosion resistance, low noise, and smooth
running;
3. The conveyed gas is not allowed to contain viscous substances,
the contained dust and hard particles ≤ 150mg/m3, gas temperature ≤
80 ℃, relative humidity ≤ 100%.

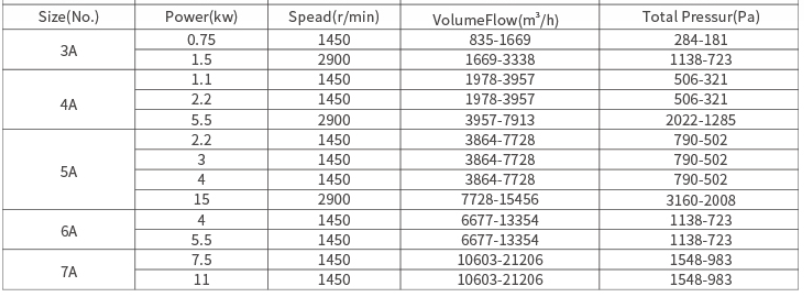

Technical Parameters

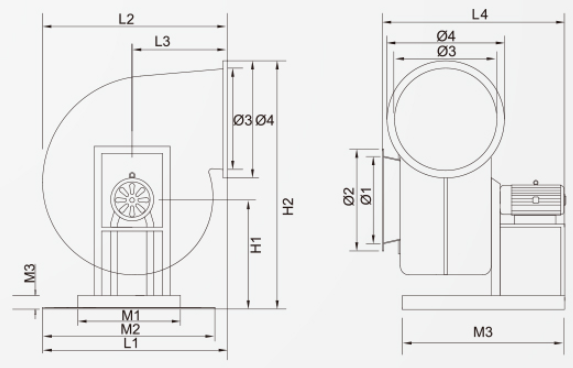

Specification Schematic
Schematic diagram of the angular position of the fan outlet
Left rotation: Counterclockwise rotation from the motor end or
drive unit end.
Right rotation: clockwise rotation from the motor end or the drive
unit end.
Company Profile
Weifang Yongda FRP Co., Ltd. was founded in 2009, is a professional
engaged in glass fiber reinforced thermosetting plastic and other
new composite materials research and development, production,
sales, service, a comprehensive scale of four-in-one enterprise!
The company's main products: FRP pipes, pipe fittings, FRP
purification tower series, biological deodorization filter tank,
environmental protection equipment, exhaust gas treatment system,
activated carbon adsorption tank, septic tank, cooling tower
series, storage tanks, equipment tanks, aquaculture equipment,
equipment shrouds, and to undertake anticorrosive engineering,
thermal insulation engineering, VOCs purification project.
Translated with DeepL.com (free version)
Why Choose Us
Advanced production equipment
Adequate inventory
Transportation and packaging
FAQ
Q1: What is your company name?
WeiFang YongDa FRP Co., Ltd
Q2: Are you a factory or a trading company?
We are a factory and a professional manufacturer of FRP products.
We have more than 50 skilled
technicians. In addition,
we have professional mold engineers for design and production.
Q3: Where is your factory? How can I visit you?
West side of the road about 3 kilometers north of Wenhe Bridge Toll
Station on National Highway 206,
Ying qiu Town, Chang Le County, Weifang City, Shandong
Province, China.If you come to our factory,
I will arrange a pick-up for you so that we can meet up faster.
Q4: How can you guarantee the product quality?
We have the quality control system ISO9001:2015, and it's been
followed strictly. We also have the
professional QC team, and each our package worker will be in charge
of the final inspection according
to the QC instruction before packing.
Q5: Can you do OEM for me?
We accept all OEM orders, just contact us and give me your
design,we will offer you a reasonable
price ASAP.
Q6: What payment methods do you support?
T/T, L/C. western union
